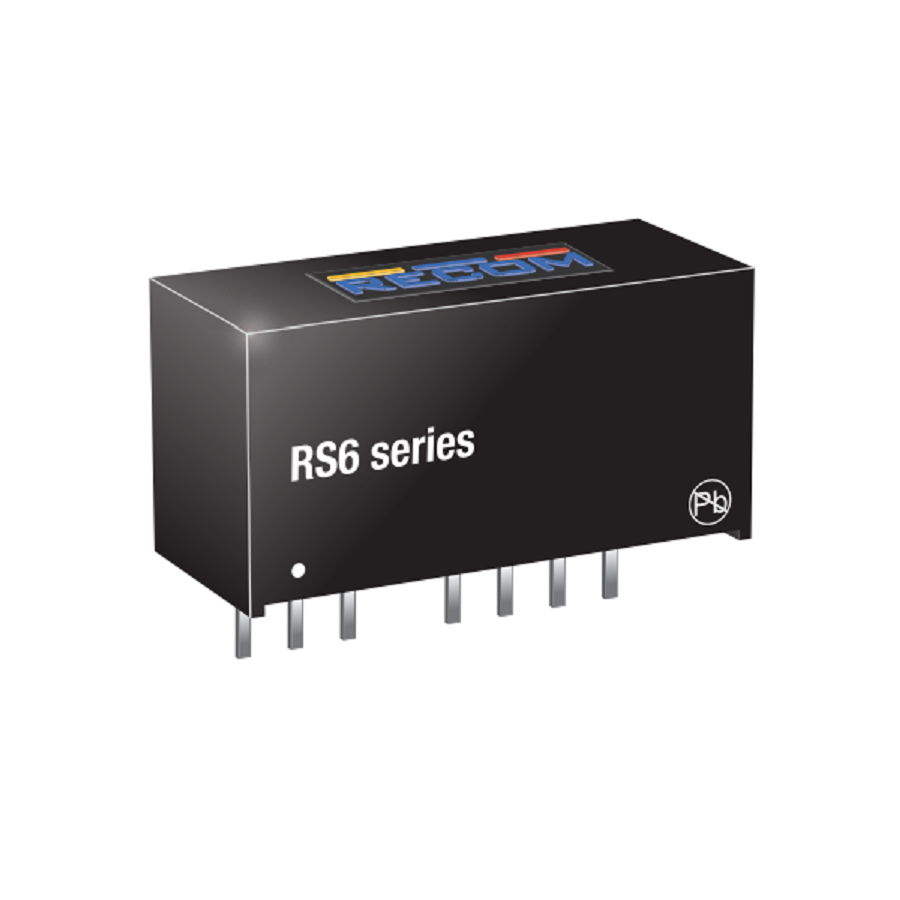

RS6-1212S
Manufacturer:
Recom Power
Mfr.Part #:
RS6-1212S
Datasheet:
Description:
DC to DC Converters SIP-8 Module, 7 Leads Through Hole Nominal Input Voltage:9 V to 18 V Min Input Voltage:9 V Max Input Voltage:18 V 87 %
| Parameter | Value |
|---|---|
| Length | 21.8 mm |
| Width | 9.2 mm |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
| Height | 11.1 mm |
| Packaging | Tube |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Weight | 4 g |
| Min Input Voltage | 9 V |
| Output Current | 500 mA |
| Output Voltage | 10.8 V |
| Max Input Voltage | 18 V |
| Isolation Voltage | 1.6 kV |
| Output Power | 6 W |
| Efficiency | 87 % |
| Nominal Input Voltage | 9 V to 18 V |
| Max Output Voltage | 13.2 V |
| Output Current-Channel 1 | 500 mA |
| Output Voltage-Channel 1 | 12 V |
Stock: 338
Distributors
pcbx
pcbxUnit Price$9.54358
Ext.Price$9.54358
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $9.54358 | $9.54358 |
| 10 | $9.04259 | $90.42590 |
| 25 | $8.83851 | $220.96275 |
| 50 | $8.63903 | $431.95150 |
| 100 | $8.44406 | $844.40600 |
| 300 | $8.25349 | $2476.04700 |
| 500 | $8.06722 | $4033.61000 |
| 1000 | $7.88501 | $7885.01000 |
